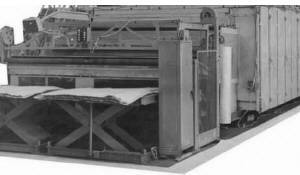

Roller driers SUR-9, SUR-4 and SUR-5 for drying of veneer


Roller driers SUR-9, SUR-4 and SUR-5 for drying of veneer The JSC "Proletarskaya Svoboda" manufactures equipment for veneer peeling.

Roller driers of the models SUR-9, SUR-4 and SUR-5 are intended for drying of veneer sheets from 0,5 up to 3,2 mm thick and are utilized in plywood manufacture.

Characteristics of driers for veneers sheets SUR-9, SUR-4, SUR-5

Description of parameters  SUR-9   SUR-4   SUR-5
Dimensions of the loading part, mm
    Length
    Width (working length of rollers)

2050
3690
Dimensions of a drying section, mm
    Length
    Width

19440
3690

12960
3690

6480
3690
Dimensions of the cooling section, mm
    Length
    Width (working length of rollers)

1620
3690
Thickness of dried veneer, mm 0,5 Е 3,2
Number of floors 5
Diameter of the rollers, mm 102
Distance between axes of the rollers, mm 162
Average output of a drier while drying veneer 1,5 mm thick (steam pressure 8кg/cm2), m3 per hour
    From float wood
    From raw material transported overland

2.0
2.5

1.6
2.0

1.2
1.25
Speed of veneer movement, m/min 0.54 Е 5.4
Heating surface of the heaters, m2 967.5 645.0 323.0
Steam pressure, кg/cm2 6 Е 8
Average steam consumption per 1 m3 of dry veneer 1100
Fans output, m3/hour
    Hot air
    Cold air

90000
17000

68000
17000

34000
17000
Capacity of the direct current drive for veneer delivery 7.2 5.3
Control limit 1:10
Overall dimensions
    Length
    Width
    Height

24900
7310
4110

18400
7310
4110

11920
7310
4110
Weight, kg 109500 75800 42300
Number of maintenance personnel 3
General capacity of the engines, kW 75.8 57.3 37.5
